| Product Range :-
500 Liters./Hr to 20,000 Liters./Hr. |
| Sources
of Water |
GIECL
Treatment Scheme |
| Deep Well Water |
Pretreatment With
R.O.System |
| Bore Hole Water |
Pretreatment With
R.O.System |
| Open Well Water |
Chlorination, Pretreatment
With R.O.System |
| River Water |
Chlorination, R.O.System
and Ozonation |
| Lake Water |
Chlorination and
Filtration with U.V. & Ozonation |
| Sea Water or Sea
Source |
Chlorination, Pretreatment
With De-Salination, R.O.System and Ozonation
|
|
| |
River Water for
the Mineral Water Production is not advisable
due to Higher Contamination present. |
The Below Mentioned
Treatment Scheme and Equipments based on the Above
Source of Water |
| |

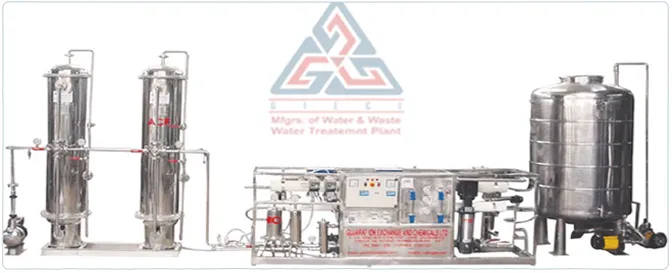

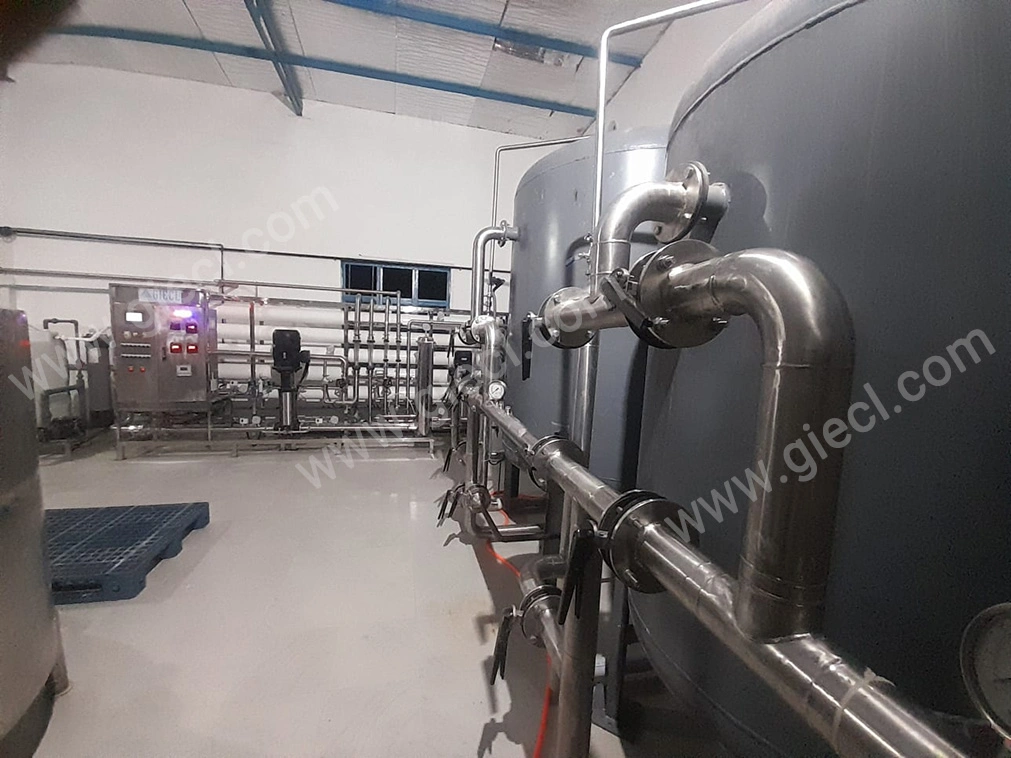

| Pretreatment
(Filtration System) |
| Raw
water will be treated by Pretreatment with
|
| Pressure
Sand Filter |
Removal
of Suspended Impurities, Turbidity |
| Activated Carbon
Filter |
Removal of Color,
Odour, Residual Chlorine, Organic and Inorganic |
| Softening Unit |
Removal for Hardness
of water ( Ca ands Mg ) |
| |
| Material
Of Construction : - S.S. 316 |
| Mode
Of Operation : - Auto & Manual |
| Filtering
Media : - Pebbles, Sand, Activated Carbon,
Cation Resin |
| Piping
& Valves : - S.S. - 316 |
| Accessories
: - Flow Meter and Pump |
| Instruments
:- Pressure Switches & Gauges |
|
| |
|
|
| |
| Pretreatment
(Filtration System) |
| Anti
Scalent dosing |
For Prevention
of Chocking in Membrane |
| MCF |
For Removal of Micron
Impurities |
| HPP |
For High Pressure
and Flow for feed water |

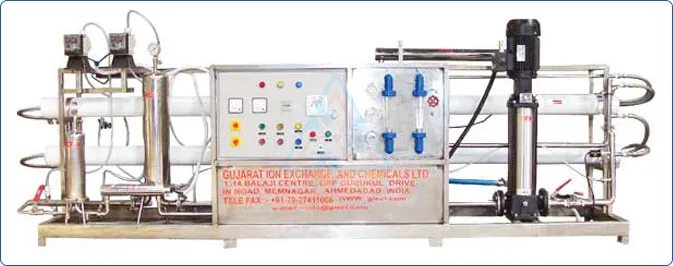

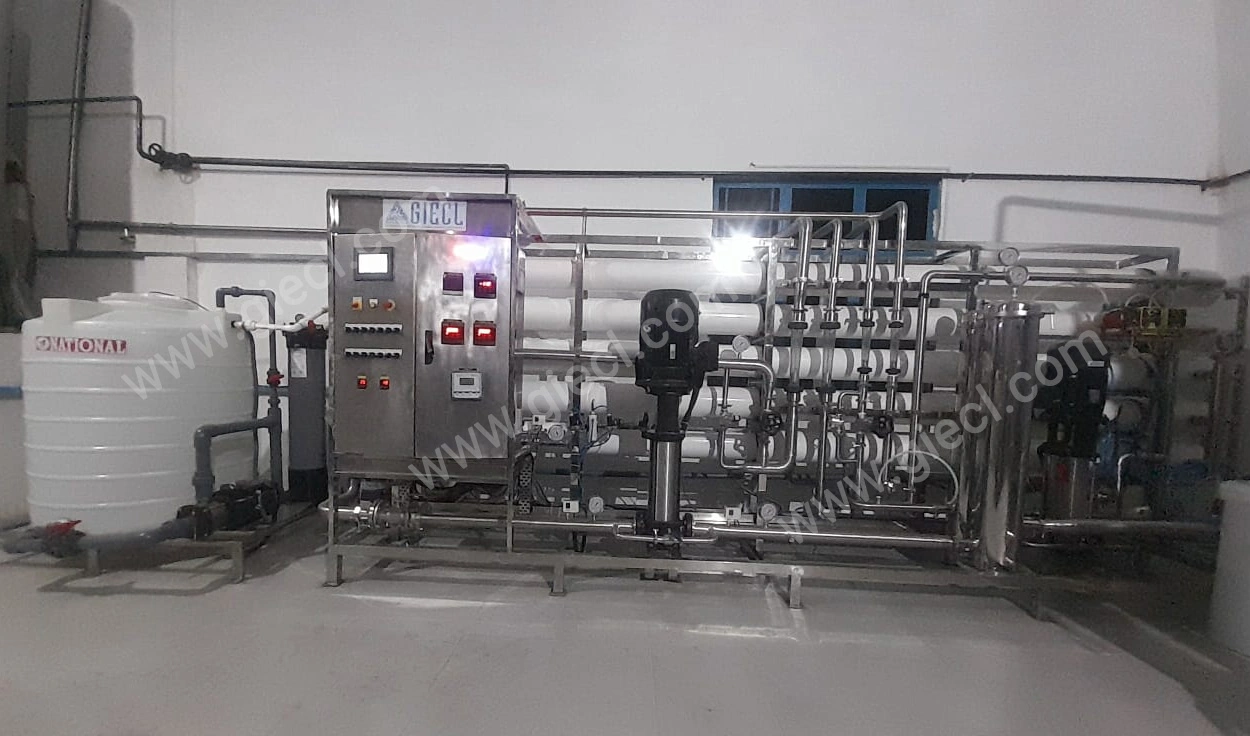

| R.O. Membranes |
For removal of TDS
up to 99% |
| |
| MCF :-
S.S. - 316 with 5 micron Cartridge Filter
|
| Pump
:- Centrifugal pump, S.S. - 316 |
| Pressure
Tube :- FRP or GRP and S.S. - 316 |
| R.O.
Elements :- TriSep - USA, Osmonics, DOW |
| Electric
Panel :- Auto and Semi Auto Available |
| Instrument
Panel :- Flow Meters and Pr. Gauge |
|
| |
| After
removal the Raw water TDS from R.O.System
product water TDS will be very less and
can not be use for Drinking Application.
As it need to reconstruction of TDS value
by adding additional Mineral in to the R.O.Treated
water by Re-Mineralization. This Process
known as Mineral Adding System. This system
contains the Laboratory Chemical dose in
to the R.O.Product water.
|
|
| |
This
process also possible by adding the Filtered
water from Pretreatment which is known as
Blending system. By this way the water contains
Natural Ions and Salts
|
|
By this way
the water contain Natural Ions and Salts. |
|

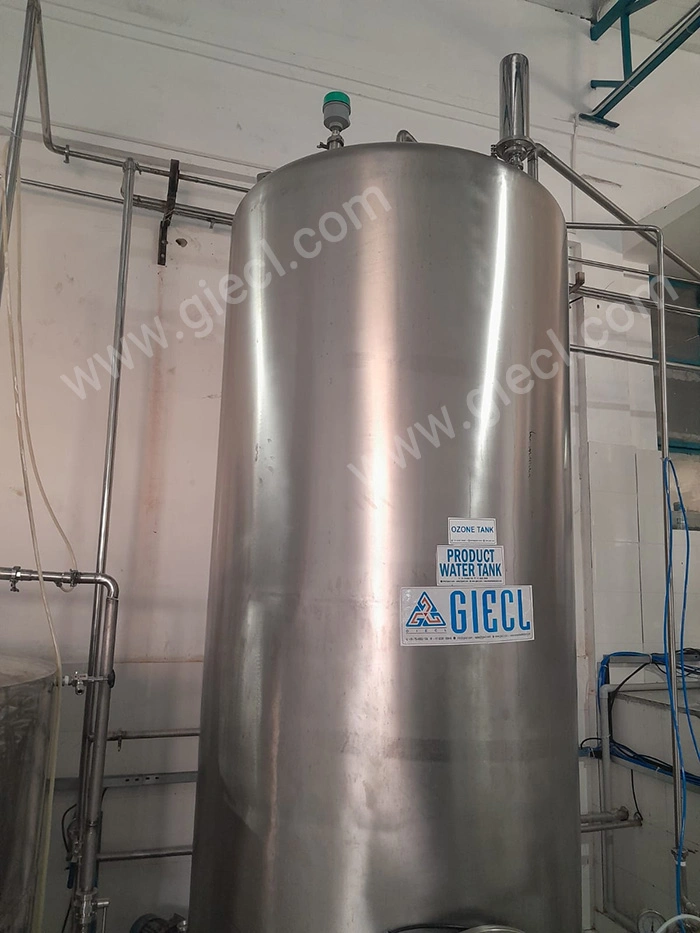

After
Re-mineralization or Blending the water
will be Store in Product Water Storage Tank
and then it Polished with Absolute Micron
cartridge Filter and then pass through the
U.V.System and Ozonation before Packaging
|
| |
|
With
this world latest Treatment of Raw Water
GIECL assures the Buyer that such Treated
water will be match with any Standards of
Drinking Water.
|
|
| |
| |
|
| |
| |

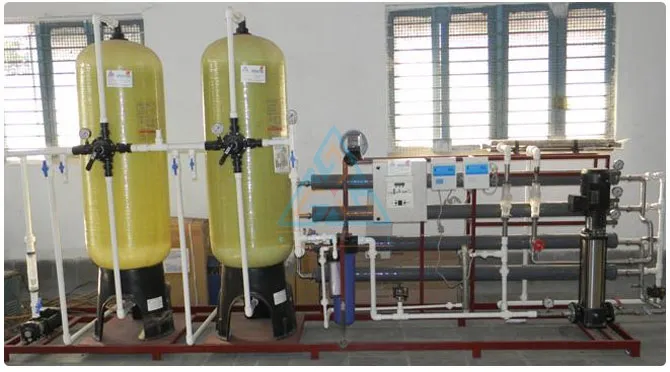

Above
Treatment Scheme and Material of equipments also
available in Fiber Glass Reinforced Plastic-FRP
|
GIECL
- Model
|
Material
of Construction |
Treatment
Schemes |
500
LPH
|
S.S.
- 316 / FRP |
Pretreatment, R.O.System,
Tanks |
1000
LPH
|
S.S.
- 316 / FRP |
Pretreatment, R.O.System,
Tanks, Ozone |

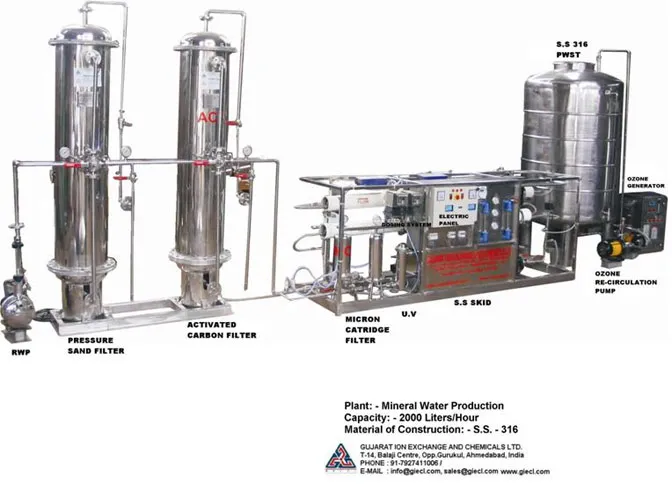

2000
LPH |
S.S.
- 316 / FRP |
Pretreatment, R.O.System,
Tanks, Ozone |
2500
LPH
|
S.S.
- 316 / FRP |
Pretreatment, R.O.System,
Tanks, Ozone |
2500
FIL |
S.S.
- 316 / FRP |
Chlorination, Filtration,
Tanks, U.V, Ozone |
5000
LPH |
S.S.
- 316 / FRP |
Pretreatment, R.O.System,
Tanks, Ozone |
10,000
LPH |
S.S.
- 316 / FRP |
Pretreatment, R.O.System,
Tanks, Ozone |
10,000
Spring |
S.S.
- 316 / FRP |
Chlorination, Filtration,
Tanks, U.V, Ozone |
|
| |
|
|
