| GIECL provide complete Solution for Water treatment as per the Tailor made requirements. |
| The above scheme will explain the different stage of purification and quality |
| Raw Water Passed to Pretreatmetn , First pass R.O. followed by Second Pass R.O. System with EDI system for High Purity water |
| |
| GIECL is supplied all the system using following Product |
 |
FRP Vessel :- Pentair |
|
R.O.Membrane :- DOW Film Tec / Hydranautics :- All Made in USA |
|
Pumping System :- Grundfoss |
|
Pressure Vessel :- Advance / Pentair |
|
Dosing System :- Toshcon Jesco |
|
Piping and Fittings :- uPVC Lead Free / S.S. – 316 |
|
EDI SYSTEM :- Electropure – Ion Pure – GE |
|
| |
 |
 |
| Click on image to Enlarge |
Click on image to Enlarge |
|
| |
| 2000 LPH R.O. System with Intermediate S.S. Storage Tank with Cation and Anion Exchange with Mix bed Unit followed by Absolute Filters and U.V. System assembled at GIECL works before dispatch installed at Zimbabwe |
| |
| |
 |
 |
| Click on image to Enlarge |
Click on image to Enlarge |
|
| UF System followed to EDI System which guarantee high purity water |
| |
| |
 |
U.V.System at Post treatment for POU
( Point of Use after the Loop Tank ) |
|
| Click on image to Enlarge |
|
|
| |
 |
Mix Bed Unit in MSRL for High Flow Rate with uPVC Pipiing and Fitting |
|
 |
Mix Bed Unit in FRP with uPVC piping |
|
|
| |
|
| |
The R.O.System shown in above pictures mounted on complete S.S. Structural skid which able to produce the 2000 Liters/Hour. System incorporates with the Dosing System for pH Correction and Anti Scalent Dosing. The High Pressure pump from Grundfoss and Dow Film Tec/ Hydranautics – USA Membranes. |
| |
| |
|
| |
2000 Liters per hour GIECL RO 2K - HSRO model for treating First Pass R.O. Product Water further
more to feed to EDI system or Mix bed Unit |
| |
| Treatment Schemes |
| Sources of Water |
|
Giecl Treatment Schemes |
| Deep well water |
: |
Pretrement with R.O.System |
| Bore Holle Water |
: |
Chlorination, Pretrement with R.O.System |
| River Water |
: |
Chlorination, Filtration and Ozonation(Option: R.O.System) |
| Lake Water |
: |
Chlorination, Filtration with U.V.& Ozonation |
| Sea Water/Sea Source |
: |
Chlorination, Filtration with De-Salination, R.O.System and Ozonation |
|
| |
 |

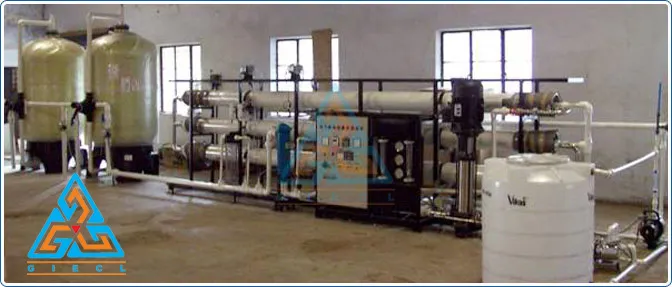

| 10,000 Liters per hour BW R.O.System installed at Mauritius |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| 4000 LPH R.O.System with Mix Bed Unit for Textile industry at Bangladesh |
| |
 |
| R.O.System for 4,000 Liters per hour with Flushing and Chemical Cleaning System |
| |
|
| 4000 Liters per Hour plant Installed at Nigeria |
| |
| Model Selection |
| Model No. |
|
Product Output Ltrs.(Gallon)/Hour |
|
Treatment Scheme |
|
Application |
| 100 BW |
|
100(26.41) |
|
MCF, HPP, R.O.System Mobile unit |
|
Home,Hospital, Drinking, Kidney Dialysis,Process |
| 500 BW |
|
500(132) |
|
MCF, HPP, R.O.System |
|
Drinking, Green House Agriculture, Kidney Dialysis |
| 1000 BW |
|
1000(264.17) |
|
PSF, ACF, ASD,MCF, HPP, R.O.System ozone |
|
Mineral Water, Boiler, Cooling Tower, Electronic Ind. |
| 2000 BW |
|
2000(528.34) |
|
PSF, ACF, ASD,MCF, HPP, R.O.System. U.V. System, Ozonation |
|
Beverages, Pharma, Textile, Industrial Application, Bottled
Water, Soft Drink, Juice |
| 5000 BW |
|
5000(1320.86) |
|
Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System |
|
Pharma, Textile, Industrial Application, Soft Drink, Paper |
| 8000 BW |
|
8000(2113.37) |
|
Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System |
|
Power Generation, Cooling Tower, Suger, Textile, Dyeing |
| 10000 BW |
|
10,000(2641.72) |
|
Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System |
|
Power Generation, Effuent Re- Cycling, Sugar, Textile,Dyeing |
|
| |
| RWP |
: |
Raw Water Pump |
|
Cl2 |
: |
Chlorine Dosing |
|
Ozone |
: |
Ozonation System |
| SOF |
: |
Softening Unit |
|
ASD |
: |
Anti Scalent |
|
ACF |
: |
Activated Carbon Filter |
| R.O. |
: |
Reverse Osm |
|
U.V. |
: |
Ultra Violet |
|
Hpp |
: |
High Pressure Pump |
| MCF |
: |
Micron Catridge |
|
PSF |
: |
Pressure Sand Filter |
|
Coagu |
: |
Coagulation |
|
| |
|
| |
The Complete Industrial R.O.System with Pretreatment in FRP
(Fiber Glass Reinforced Plastic) such as Raw Water Pump, Pressure
Sand Filter, Activated Carbon Filter, MCF and Complete Reverse
Osmosis System mounted on M.S. Structural Skid.
Instruments like Pressure Guage, Pressure Switches, Flow Indicator,
TDS Controller, Electrical Panel with all Safety Features.
|
| RODMMB (PHARMACEUTICAL) |
| |
| RO System with D.M.Plant with Mix Bed Unit (M.B.Unit) For GMP,
WHO and SCH M for Tablet, Liquid Product |
| |
 |
| |
| The Conventional Water treatment System for Pharmaceuticals application
to produce high quality Water for Tablet, Liquid, Process water
and equipment’s washing.
The Raw Water pass through the R.O.System with Cation and Anion
Exchanger and further it will pass through the Mix bed Unit which
will allow producing the Typical < 2 Conductivity water.
The High Purity Water will further pass through the 1 & 0.2
micron Absolute Micron Cartridge filter and U.V.System and store
in to the Close Loop Tank.
The Complete System will be FRP and S.S. only with Pressure Gauges,
Pressure Switches and Safety features incorporate with Electric control
panel. |
| |
| HSRO (PHARMACEUTICAL) |
| |
| Hot Water Senitizable RO System for WFI (Water For Injection)
With USP 25, 26, 27 Standards |
| |
 |
| |
| The Complete Sophisticated Hot Water Senitizable R.O.System for
high purity Water with Automatic Operation with Sanitary fittings.
System is completely in S.S. – 316 high grade materials.
The Inbuilt Hot Water generation system will provide immediate
Hot Water for Sanitization with Tank and Pump Provided with system
with all controls and Safety. |
| |
 |
|
 |
|
 |
|
 |
Mix Bed Unit |
|
25 - 50 LPH R.O.Plant |
|
100 -200 LPH R.O.Plant |
|
Media Filter |
|
| |
| |
