Automatic Pet Blow Moulding Machine

servo motor operation -

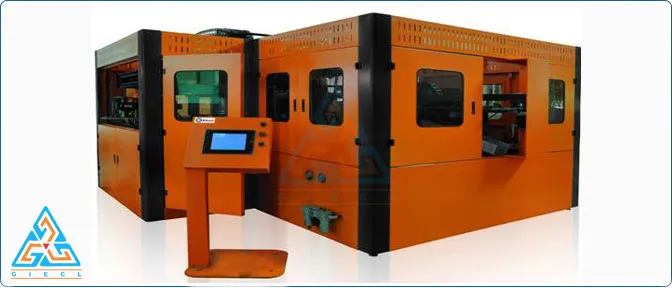

Fully automatic pet blow moulding machine for up to 20 cavities for 20,000 bottles per hour

Automatic Pet Blow Moulding Machine

Prodcution Speed : 2000 Bottles per hour to 20,000 bottles per hour
Bottle volume : 200 ml – 1500 ml
Container : pet, pp
bottle type : csd / water/ hotfill

Automatic Pet Blow Moulding Machine

Automatic Pet Blow Moulding Machine

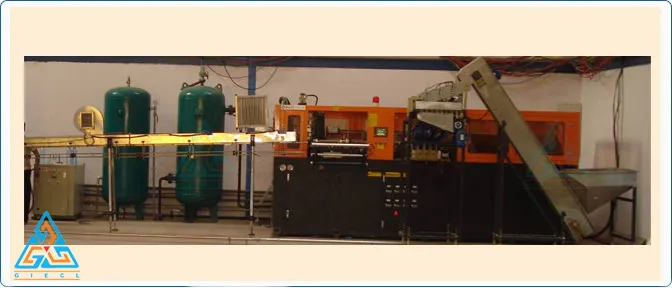

4 cavity blowing machine with air receving tank and water chiller with automatic bottle discharge to filling machine without bottle drop

Automatic Pet Blow Moulding Machine


SPSB Series of Two Stage PET Blow Moulding Machine

SPSB Series of Two Stage PET Blow Moulding Machine

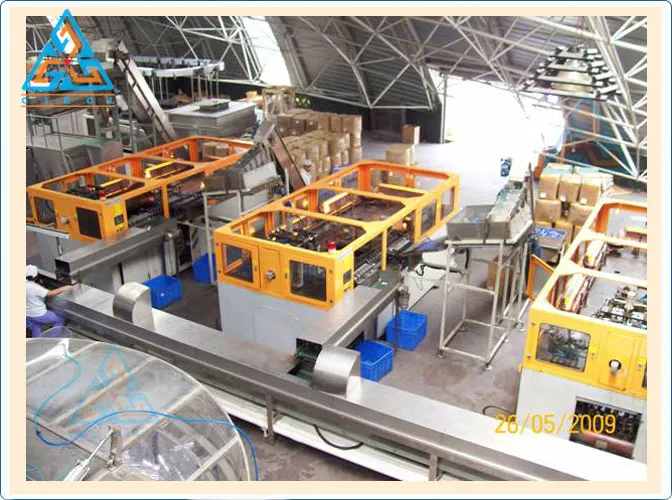

6 cavity machine online with conveyor connected with bottle unscrambler

SPSB Series of Two Stage PET Blow Moulding Machine



SPSB Series of Two Stage PET Blow Moulding Machine

GIECL manufactures excellent quality Automatic PET Blow Moulding Machines for PET bottle production. Our Automatic PET Blow Moulding Machines have wider wide-mouth capability, faster production rates, and shorter changeover times. Also have features such as preferential heating or heat-setting capability.


Our Two stage Plastic PET machines can make bottles from round to flat bottle styles. With our two stage Automatic PET Blow Molding Machines you can produce various different shaped PET containers, such as mineral water bottle, beverage bottle, cosmetics bottle, medicine bottle, pesticide bottle, edible oil bottle, milk bottle, Juice bottle and many more types of Plastic PET Bottles.

Low labor consumption, high output, uniform bottle quality, easy and safe operation, and short changeover times make this system very efficient to operate, are the main features of our plastic machine range to meet the needs of various applications. It comes with one or two cavities and makes bottles or jars up to 5L at rates around 1200 bottles/hr. Controlled by PLC, the whole process from perform feeding to bottle discharging is complete automatically, with advantages of labor saving.


FEATURES OF AUTOMATIC PET BLOW MOULDING MACHINE


FEATURES OF AUTOMATIC PET BLOW MOULDING MACHINE
  • Quick Mold Change-Over using Mold Cage System
  • Power Equipped Machine using Air Recovery System
  • Precise Heating System using Heating Power adjustable in decimals
  • High Output per Cavity compare to the other Machines
  • Specially designed feeding system carries the preform automatically
  • Easy installation and starting
  • Advanced PLC control system with a use-friendly Control Panel
  • Smooth and steady operation
  • Long service life and reliable performance
  • Independent & simple linear running system
  • Powerful & Efficient Heating Unit with Precision Control and Convenient Adjusting Device
  • Equipped with Specially Designed Air Storage Unit
  • Cooling system to get perfect cooling result

MACHINE TECHNICAL SPECIFICATIONS


Model Unit SPSB
02-3
SPSB
02-5
SPSB
04-2
SP-Flex
02-2
SP-Pristine
04-0.5
SP-Pristine
04-2
Production Rate BPH 2400 1200 4000 1800 4800 4800
No of Cavities - 2 2 4 2 4 4
Max Container Dia mm 130 170 105 115 65 85
Max Container Height mm 350 350 305 350 220 350
Max Container Volume Liters 3 5 2 2 0.5 2
Max Neck Size mm 32 120 32 96 32 32
Length (A+B) mm 5600 5600 5900 5600 5900 5900
Width (C) mm 2800 3300 4000 2250 3000 3560
Height (D) mm 2400 2400 2700 2300 2300 2300
Height (E) mm 3300 3300 3500 3300 3500 3500
Weight (approx) Kg 5700 6000 7000 5000 5700 6500
Electrical - - - - - - -
Total Load Kw 39 42 75 19 38 75
Heating Load Kw 28 28 56 15 24 56

AIR RECOVERY SYSTEM


Blowing Air recollected in separate Air Reservoir before Exhaust. The same air is reused for all Pneumatic operations in the machine, practically eliminating the requirement of Operations Air, and thus reducing capital and recurring cost.
