Semi-Automatic & Automatic Pet Blow Moulding Machine

Semi-Automatic Pet Blow Moulding Machine

GIECL 5000 Series of Two Stage Pet Blow Moulding Machine
GIECL manufactures excellent quality Semi Automatic PET Blow Molding Machines. Two Stage Semi Automatic Blow Molding Machine is ideal equipment to produce various PET containers for mineral water, juice, carbonated drinks, carbonated beverage, alcohol, tea, edible oil, nut, medicine, detergent, cosmetics bottles and hot-filling bottles, etc. Semi Automatic PET Blow Moulding machine is ideal to meet your different production purpose and capacity. Our Two Stage PET Semi automatic molding machine has been designed to fit high-output automatic PET bottle production. High output, reliable automatic running, precise control, compact structure and low maintenance are the main features of our Plastic Machines.


Features of Two Stage Semi Automatic Blow Molding Machine

  • Can operate easily without any special training and Safety Operation
  • Mould adjusting controlled by electric motor
  • With PLC control system & button switches
  • With high-pressure air hose and low-pressure air hose
  • Speed of production - 500/600 bottles per hour
  • Max. Product Volume: 2 Liters Double Cavity, 5 Liters Single Cavity and 2 Liters Double Cavity
  • Total Weight: 1200 kg, 1500 kg
  • Max. Product Height: 350mm
  • Neck Size: 20-45mm Double Cavity up to 120mm Single Cavity
  SP/5000/H SP/5000/P SP/2000/H SP/2000/P
Machine Type Semi Automatic Semi Automatic Semi Automatic Semi Automatic
Blowing Pressure 25 Kg / cm² 25 Kg / cm² 25 Kg / cm² 25 Kg / cm²
Locking Force 25 Ton 20 Ton 25 Ton 15 Ton
Mould Thickness 175mm - 250mm 175mm - 250mm 135mm - 175mm 135mm - 175mm
Opening Stroke 250mm 250mm 150mm 150mm
Total Weight 1500 Kg. 1200 Kg 1500 Kg 1200 Kg

  SP/5000/H SP/5000/P SP/2000/H SP/2000/P
Max. Product Height 350mm 350mm 350mm 350mm
Neck Size (Min.-Max.) 20-45mm Double Cavity Up to 120mm Single Cavity 20-45mm Double Cavity Up to 120mm Single Cavity 20-45mm Double Cavity Up to 120mm Single Cavity 20-45mm Double Cavity Up to 120mm Single Cavity
Max. Product Volume 2 Liters Double Cavity 5 Liters Single Cavity 2 Liters Double Cavity 5 Liters Single Cavity 2 Liters Double Cavity 2 Liters Double Cavity
Total Connected Load 415 V (±5% Three Phase 4 wire,50-60Hz + Earth) 15 kW (Without Utilities) 12.8 kW (without Utilities) 15 kW (Without Utilities) 12.8 kW (without Utilities)

Semi-Automatic Pet Blow Moulding Machine

Semi Automatic 4 cavities PET Blowing machine for 500 ml and 1500 ml With Auto Bottle Drop

Semi-Automatic Pet Blow Moulding Machine

2 cavities PET Blow Moulding Machine


Semi-Automatic Pet Blow Moulding Machine

2 Blowing and 1 Heating conveyor will produce 1600 Bottles per hour and With Auto Bottle Drop features can produce up to 2000 Bottles per hour


4 cavity machine can do only 1000 ml bottles with 1600 Bottles per hour

4 cavity machines can do only 1000 ml bottles with 1600 Bottles per hour

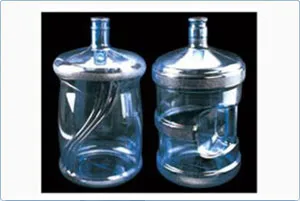

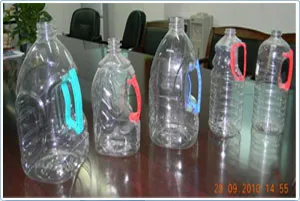

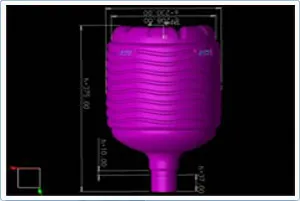

Different type of Moulds for 2,000 ml to 20,000 ml

Different type of Moulds for 2,000 ml to 20,000 ml
Different type of Moulds for 2,000 ml to 20,000 ml

Different type of Moulds for 2,000 ml to 20,000 ml
Different type of Moulds for 2,000 ml to 20,000 ml
