Brackish Water Plant (R.O.System)

SOMETHING TO KNOW ABOUT

Brackish Water Plant (R.O.System)

These systems are designed for any application that requires high output Reverse Osmosis equipment. We can also customize these units as per the feed water parameters, whether it be Bore well or brackish Water.

All of the components are of the highest quality, and arranged on a single compact frame, for maximum utilization of space. The equipments can be custom designed to work with feed water that contains up to 40,000 parts per million of TDS (Total Dissolved Solids.)

GIECL is supplied all the system using following Product

  • FRP Vessel :- Pentair
  • R.O. Membrane :- Hydranautics/ Toray :- All Made in USA
  • Pumping System :- Grundfoss
  • Pressure Vessel :- Advance / Pentair
  • Dosing System :- Toshcon Jesco
  • Piping and Fittings :- uPVC Lead Free / S.S. – 316

Brackish Water Plant (R.O.System)

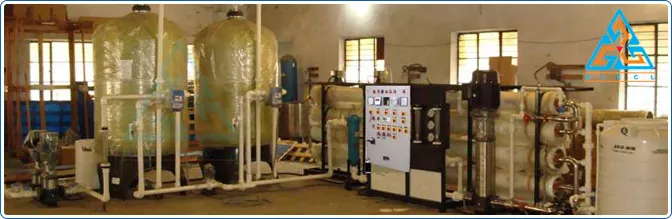

Fully Automatic 15,000 Liters per hour Reverse Osmosis system for Brackish water treatment for Boiler and Food industries. No operator is required for this plant operation installed at Yemen

Brackish Water Plant (R.O.System)

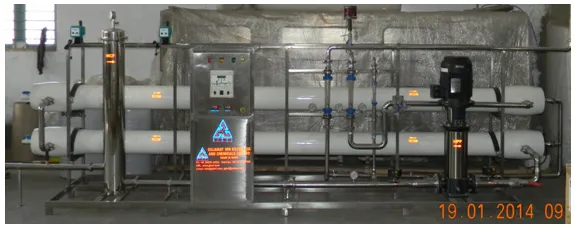

The R.O. System shown in above picture is mounted on complete S.S. Structural skid which is able to produce the 2000 Liters/Hour pure water. System is incorporated with the Dosing System for pH Correction and Anti Scalent Dosing. The High Pressure pump from Grundfoss and Hydranautics/ Toray – USA Membranes.

Brackish Water Plant (R.O.System)

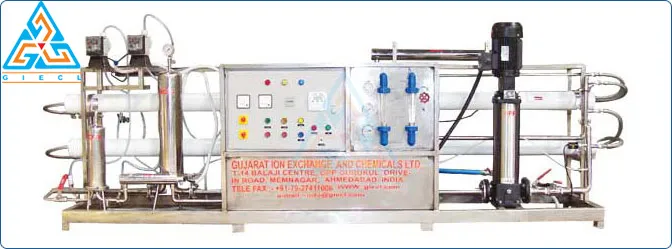

3000 Liters per hour GIECL RO 3KBW model for treating Brackish Water with PLC control Panel and Groundfoss pump

Brackish Water Plant (R.O.System)

12,000 liters per hour GIECL RO 12K BW model for treating Brackish Water with PLC control Panel and Groundfoss pump


Treatment Schemes

Sources of Water   Giecl Treatment Schemes
Deep well water : Pretreatment with R.O. System
Bore Hole Water : Chlorination, Pretreatment with R.O. System
River Water : Chlorination, Filtration and Ozonation(Option: R.O. System)
Lake Water : Chlorination, Filtration with U.V.& Ozonation
Sea Water/Sea Source : Chlorination, Filtration with De-Salination, R.O. System and Ozonation

Brackish Water Plant (R.O.System)

10,000 Liters per hour BW R.O. System installed at Mauritius

Brackish Water Plant (R.O.System)

15,000 LPH R.O. System with Auto Flushing System / Cleaning System for Brackish Water treatment

Brackish Water Plant (R.O.System)

8,000 Liters per hour R.O. System for Brackish Water treatment with Flushing and Chemical Cleaning option

Brackish Water Plant (R.O.System)

Brackish Water Plant (R.O.System)

Brackish Water Plant (R.O.System)

Brackish Water Plant (R.O.System)

4000 LPH R.O. System with Mix Bed Unit for Textile industry at Bangladesh

Brackish Water Plant (R.O.System)

R.O. System for 4,000 Liters per hour with Flushing and Chemical Cleaning System

Brackish Water Plant (R.O.System)

4000 LPH R.O. System with Mix Bed Unit for Textile industry at Bangladesh

Brackish Water Plant (R.O.System)

4000 Liters per Hour plant Installed at Nigeria


Model Selection


Model No. Product Output Ltrs.(Gallon)/Hour Treatment Scheme Application
100 BW 100(26.41) MCF, HPP, R.O.System Mobile unit Home,Hospital, Drinking, Kidney Dialysis,Process
500 BW 500(132) MCF, HPP, R.O.System Drinking, Green House Agriculture, Kidney Dialysis
1000 BW 1000(264.17) PSF, ACF, ASD,MCF, HPP, R.O.System ozone Mineral Water, Boiler, Cooling Tower, Electronic Ind.
2000 BW 2000(528.34) PSF, ACF, ASD,MCF, HPP, R.O.System. U.V. System, Ozonation Beverages, Pharma, Textile, Industrial Application, Bottled Water, Soft Drink, Juice
5000 BW 5000(1320.86) Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System Pharma, Textile, Industrial Application, Soft Drink, Paper
8000 BW 8000(2113.37) Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System Power Generation, Cooling Tower, Suger, Textile, Dyeing
10000 BW 10,000(2641.72) Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System Power Generation, Effuent Re- Cycling, Sugar, Textile,Dyeing

RWP : Raw Water Pump Cl2 : Chlorine Dosing Ozone : Ozonation System
SOF : Softening Unit ASD : Anti Scalent ACF : Activated Carbon Filter
R.O. : Reverse Osm U.V. : Ultra Violet Hpp : High Pressure Pump
MCF : Micron Catridge PSF : Pressure Sand Filter Coagu : Coagulation

Brackish Water Plant (R.O.System)

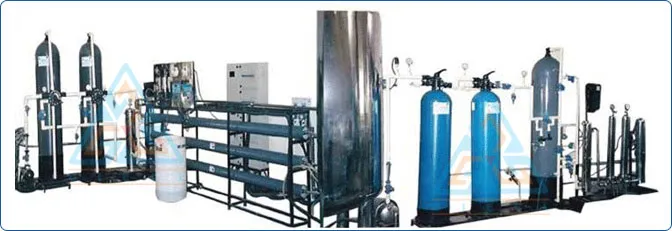

The Complete industrial R.O. System with pretreatment in FRP (Fiber Glass Reinforced Plastic) such as Raw Water Pump, Pressure Sand Filter, Activated Carbon Filter, MCF and complete Reverse Osmosis System mounted on M.S. Structural Skid.

Instruments like Pressure Gauge, Pressure Switches, Flow Indicator, TDS Controller, Electrical Panel with all Safety Features.

Brackish Water Plant (R.O.System)

RODMMB (PHARMACEUTICAL)

RO System with D.M. Plant with Mix Bed Unit (M.B. Unit) For GMP, WHO and SCH M for Tablet, Liquid Product

RODMMB (PHARMACEUTICAL)

The conventional water treatment system for pharmaceutical application to produce high quality water for Tablet, Liquid, Process water and equipment washing.

The Raw water passes through the R.O. System with Cation and Anion Exchanger and further it will pass through the Mix bed Unit which will allow producing the typical < 2 conductivity water.

The High Purity Water will further pass through the 1 & 0.2 micron Absolute Micron Cartridge filter and U.V. System and store in to the Close Loop Tank.

The Complete System will be FRP and S.S. only with Pressure Gauges, Pressure Switches and Safety features incorporate with Electric control panel.


HSRO (PHARMACEUTICAL)

Hot Water Senitizable RO System for WFI (Water For Injection) With USP 25, 26, 27 Standards

HSRO (PHARMACEUTICAL)

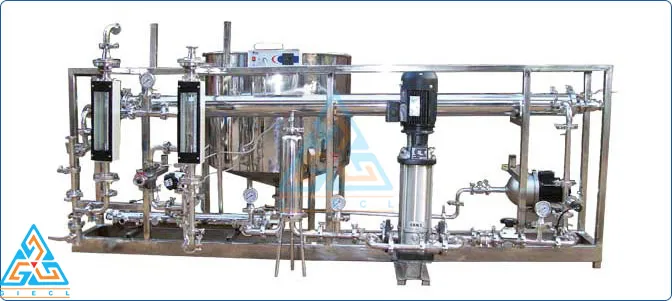

The Complete Sophisticated Hot Water Senitizable R.O. System for high purity water with Automatic Operation with Sanitary fittings. System is completely in S.S. – 316 high grade materials. The Inbuilt Hot Water generation system will provide immediate Hot Water for Sanitization with Tank and Pump provided with system with all controls and Safety.

Mix Bed Unit

Mix Bed Unit
